Since the very beginning, ExtendSim, created by an electronics engineer, included a library of blocks representing electronic components. A fascinating tool for the engineer, teacher or student.

Noisy FM System

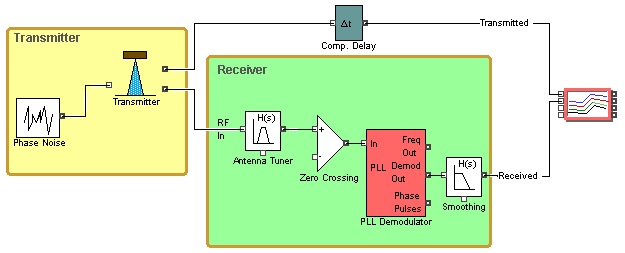

This model shows the performance of a receiver in a digital FM transceiver system within a noisy environment. Such a system with a Phase Locked Loop (PLL) would take week to prototype and test.



Some blocks of the Electronics library
